Transducer Type Thermistor

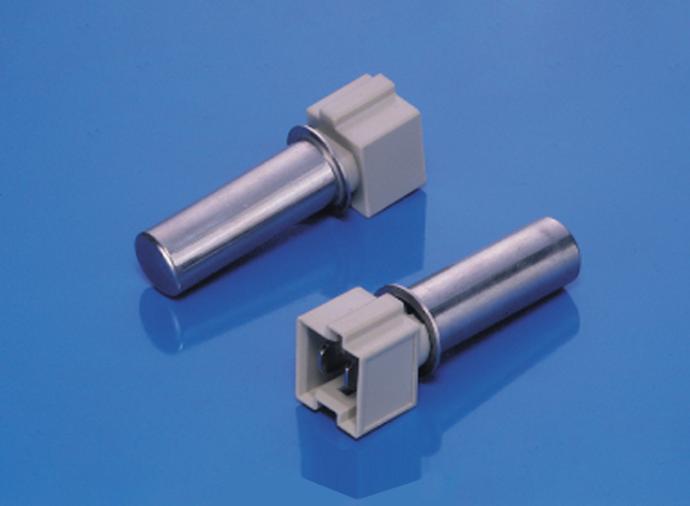

Type:TR series

Features

  1. Appropriate to use in hard weather
  2. Compact stainless steel case
  3. High utility products

The TR series, the highly reliable thermistors, are characterized by their stability.

PDF Specification Download

Application

They have wide usage in household appliances, such as washing machines, dish washers, tumble-dryers, water boilers, and so on.



SPECIFICATIONS
Operating temperature range
-40℃ to 250℃


R/T curve
TR Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 23-25 .


Temperature ranges
Rated Zero-power resistance at 25℃


Tolerances
土1%, 土3%, 土5%


Dissipation constant
2.5 mW/℃ in still air


Thermal time constant
Typically 15 second in water


Maximum
power rating

250mW (at 25℃)


Custom options
Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths
