Thin-Film NTC Thermistors

Type:TJ series

Features

  1. Suittable for narrow space
  2. Rapid response time
  3. Elastic and solder easily
  4. RoHS Compliance
  5. UL1434 Certification

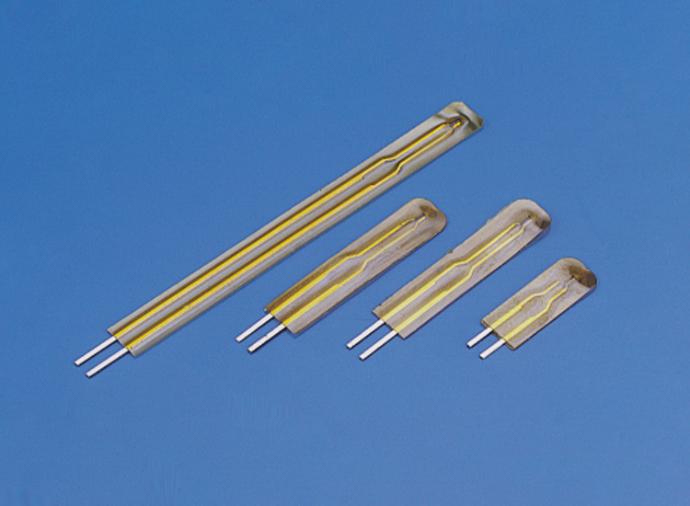

The TJ thermistor feature ultra thinness of 500 µm and superior electrical insulation. It is possible to use with safety in ambience that might contact with electrodes.

PDF Specification Download

Application

Suitable for use in laptop.



SPECIFICATIONS
Operating temperature range
-30℃ to 90℃


R/T curve
TJ Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 23-25 .


Temperature ranges
Rated Zero-power resistance at 25℃


Tolerances
土1%, 土3%, 土5%


Dissipation constant
0.7 mW/℃ in still air


Thermal time constant
Typically 2 second in stirred oil


Maximum
power rating

3.5mW (at 25℃)


Custom options
Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths
