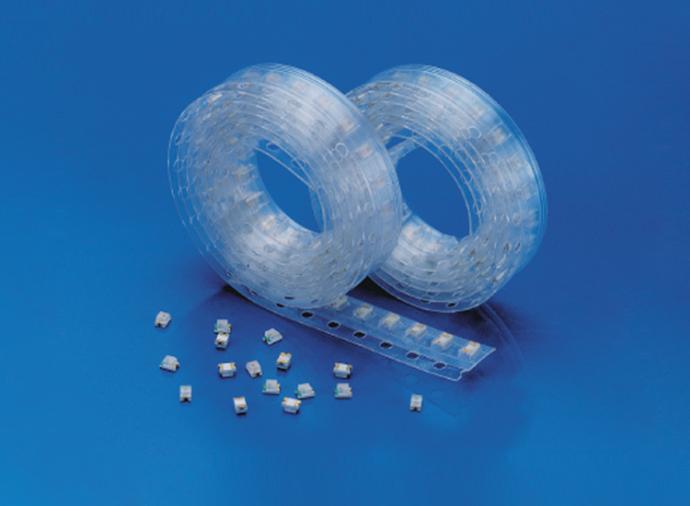

Surface Mount Chip Thermistors
Type:CT series
Features
- Surface mount capability
- Uniformly sized for pick and place assembly
- Ultra small size and low capacitance
- Easy Soldering
- RoHS Compliance
The CT thermistor, the highly reliable thermistors, are characterized by their fast response time, which was made by the way of chip on board. Our thermistors are the most excellent products of today's chip thermistors manufacturing.

Application
Personal computers
Temperature compensation
Medical devices
Automotive devices
SPECIFICATIONS |
|||
Operating temperature range
| -30℃ to 110℃ | ||
R/T curve
| CT Series thermistors are available in all R/T curve materials. Detailed curve material information on pages 23-25 . | ||
Temperature ranges
| Rated Zero-power resistance at 25℃ | ||
Tolerances
| 土1%, 土3%, 土5% | ||
Dissipation constant
| 0.9 mW/℃ in still air | ||
Thermal time constant
| Typically 3-8 second in air | ||
Maximum power rating | 4-6mW (at 25℃) | ||
Custom options
| Additional temperature and tolerance ranges. Various lead materials, diameters and lengths |
