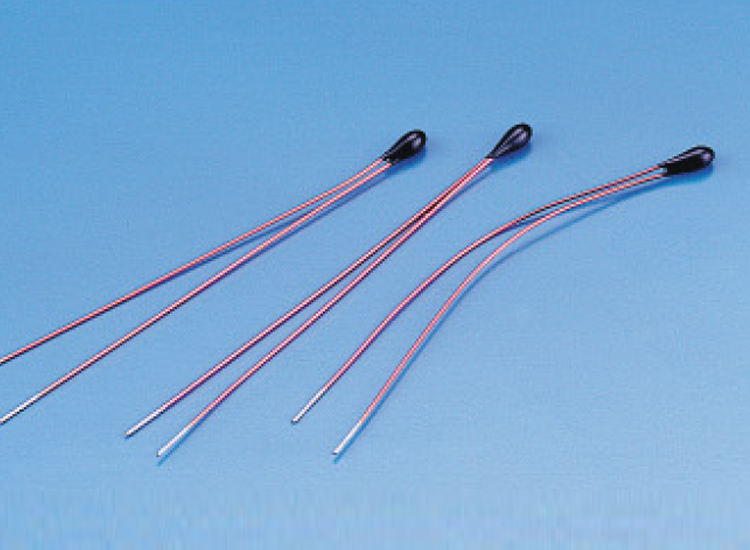

Point Matched NTC Thermistors

Type:PM Series

Features

  1. Tolerance resistance matched to specific temperature
  2. Reduced cost for high volume applications
  3. Proprietary processes produce top of the line quality and stability
  4. ±1% to ±10% tolerances
  5. RoHS Compliance

PM Series thermistors are precision tested at a chosen tolerance to a specific temperature. This cost effective thermistor provides an advantage to industries with high volume applications, such as in HVAC, automotive, and industrial markets.

PDF Specification Download

Application

Such as in HVAC, automotive, and industrial markets.



SPECIFICATIONS
Operating temperature range
PM Series thermistors may be intermittently cycled at temperatures from -50℃ to 150℃. Optimum stability is achieved when they are operated at temperatures within the specified temperature range.


R/T curve
PM Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 23-25 .


Temperature ranges
Standard Point Matched
0℃、25℃、37℃、45℃、70℃、100℃


Tolerances
土0.25 ℃, 土0.5 ℃, 土1%, 土3%, 土5%


Dissipation constant
2 mW/℃ in still air
13 mW/℃ in stirred oil


Thermal time constant
Typically 0.75 second in stirred oil


Maximum
power rating

10mW (at 25℃ )


Custom options
Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths
