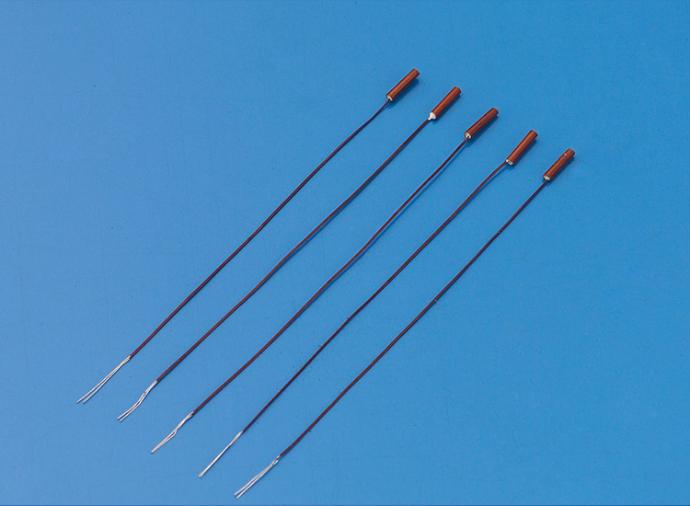

Life Sciences & Micro Temperature Probes
Type：LSMC Micro series
Features
- Interchangeable or Point Matched tolerances
- Fast response accuracy to ±0.1℃
- Custom designs at a low cost
- Potted with epoxy in a polymide tube
- Operatable with YSI 400 and 700 temperature monitor instruments.
Application
These tiny thermistors can be used in Life Science applications that require fast response and small size.
| SPECIFICATIONS |
|||
|
Operating temperature range
| LSMC Series thermistors may be intermittently cycled at temperatures from -40℃ to 125℃. Optimum stability is achieved when they are operated at temperatures within the specified temperature range. | ||
|
R/T curve
| LSMC Series is manufactured with "A" and "B" curve materials. Detailed curve material information on pages 23-25 . | ||
|
Temperature ranges
| 0℃ to 50 ℃ 20 ℃ to 45℃ 0℃ to 70℃ | ||
|
Tolerances
| 土0.10 ℃, 土0.20 ℃,土0.5℃, 土1% | ||
|
Dissipation constant
| 0.3 mW/℃ in still air | ||
|
Thermal time constant
| Typically 0.25 second in stirred oil | ||
|
Maximum power rating | |||
|
Custom options
| Lead materials: AWG 38 nickel alloy copper conductors with heavy isomid insulation, parallbel bonded configuration. Parylene coating is available which provides a thin coating resistant to corrosion and humidity. | ||
