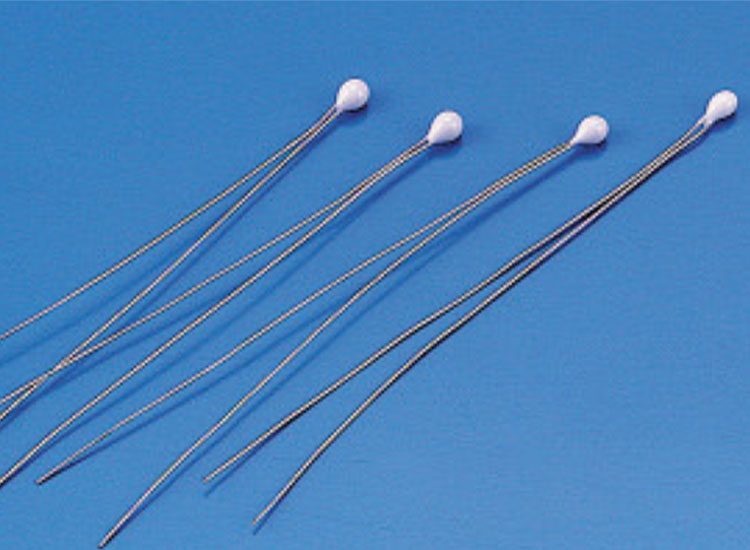

Interchangeable NTC Thermistors

Features

High accuracy tolerances to +/-0.10°C

Operating ranges from -50℃ to 150℃

Small size with ease of handling

Proprietary processes produce top of the line quality and stability

RoHS Compliance

UL 1434 Certification (IN-A010K Series)

SPECIFICATIONS
Temperature rating/ recommended operating ranges	IN Series thermistors may be intermittently cycled at temperatures from -50℃ to 150℃. Optimum stability is achieved when they are operated at temperatures within the specified temperature range.	R/T curve	IN Series thermistors are available in all R/T curve materials. Detailed curve material information on pages 22-24 .
Temperature ranges	-20℃ to 50℃ 0℃ to 50 ℃ 20 ℃to 45℃ O℃ to 70℃ O℃ to 100 ℃	Dissipation constant	2 mW/℃ in still air 13 mW/℃ in stirred oil
Tolerances	土0.10 ℃, 土O.20 ℃,土0.5℃ C, 土1.00%℃	hermal time constant	Typically 0.75 second in stirred oil
Custom options	Additional temperature and tolerance ranges. Various lead materials, diameters and lengths

SPECIFICATIONS

Temperature rating/
recommended operating
ranges

IN Series thermistors may be
intermittently cycled at temperatures
from -50℃ to 150℃. Optimum stability
is achieved when they are operated
at temperatures within the specified
temperature range.

R/T curve

IN Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 22-24 .

Temperature ranges

-20℃ to 50℃
0℃ to 50 ℃
20 ℃to 45℃
O℃ to 70℃
O℃ to 100 ℃

Dissipation constant

2 mW/℃ in still air
13 mW/℃ in stirred oil

Tolerances

土0.10 ℃, 土O.20 ℃,土0.5℃ C, 土1.00%℃

hermal time constant

Typically 0.75 second in stirred oil

Custom options

Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths

IN Series Specification Choose

Interchangeable NTC Thermistors B: 3977 / R(KΩ):30 Accuracy:0.2°C	Interchangeable NTC Thermistors B: 3977 / R(KΩ):30 Accuracy:1~5%	Interchangeable NTC Thermistors B: 3977 / R(KΩ):50 Accuracy:0.1°C	Interchangeable NTC Thermistors B: 3977 / R(KΩ):50 Accuracy:0.2°C
Interchangeable NTC Thermistors B: 3977 / R(KΩ):50 Accuracy:1~5%	Interchangeable NTC Thermistors B: 3977 / R(KΩ):100 Accuracy:0.1°C	Interchangeable NTC Thermistors B: 3977 / R(KΩ):100 Accuracy:0.2°C	Interchangeable NTC Thermistors B: 3977 / R(KΩ):100 Accuracy:1~5%
Interchangeable NTC Thermistors B: 3435 / R(KΩ):10 Accuracy:0.1°C	Interchangeable NTC Thermistors B: 3435 / R(KΩ):10 Accuracy:0.2°C	Interchangeable NTC Thermistors B: 3435 / R(KΩ):10 Accuracy:1~5%	Interchangeable NTC Thermistors B: 3695 / R(KΩ):10 Accuracy:0.1°C
Interchangeable NTC Thermistors B: 3695 / R(KΩ):10 Accuracy:0.2°C	Interchangeable NTC Thermistors B: 3695 / R(KΩ):10 Accuracy:1~5%	Interchangeable NTC Thermistors B: 3942 / R(KΩ):20 Accuracy:0.1°C	Interchangeable NTC Thermistors B: 3942 / R(KΩ):20 Accuracy:0.2°C
Interchangeable NTC Thermistors B: 3942 / R(KΩ):20 Accuracy:1~5%	Interchangeable NTC Thermistors B: 3942 / R(KΩ):30 Accuracy:0.1°C	Interchangeable NTC Thermistors B: 3942 / R(KΩ):30 Accuracy:0.2°C	Interchangeable NTC Thermistors B: 3942 / R(KΩ):30 Accuracy:1~5%
