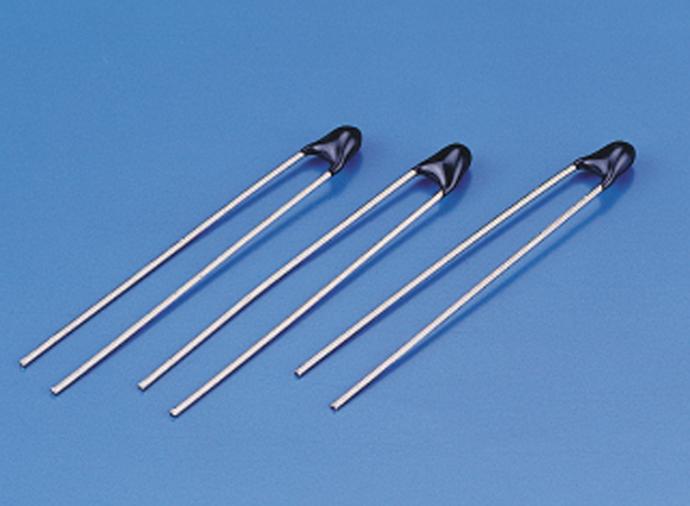

High-Precision NTC Thermistors
Type：HT Series
Features
- Low cost, high stability
- Excellent thermal cycle endurance
- No adjust between the control circuit and the sensor
- RoHS Compliance
The HT thermistor is a high-performance thermal sensing device. They have small B-value tolerance and resistance.
Application
They are also useful for insert to PCB in the constant length.
| SPECIFICATIONS |
|||
|
Operating temperature range
| -40℃ to 110℃ | ||
|
R/T curve
| HT Series thermistors are available in all R/T curve materials. Detailed curve material information on pages 23-25 . | ||
|
Temperature ranges
| Rated Zero-power resistance at 25℃ | ||
|
Tolerances
| 土1%, 土3%, 土5% | ||
|
Dissipation constant
| 2 mW/℃ in still air | ||
|
Thermal time constant
| Typically 3 second in stirred oil | ||
|
Maximum power rating | 10-15mW (at 25℃) | ||
|
Custom options
| Additional temperature and tolerance ranges. Various lead materials, diameters and lengths | ||
