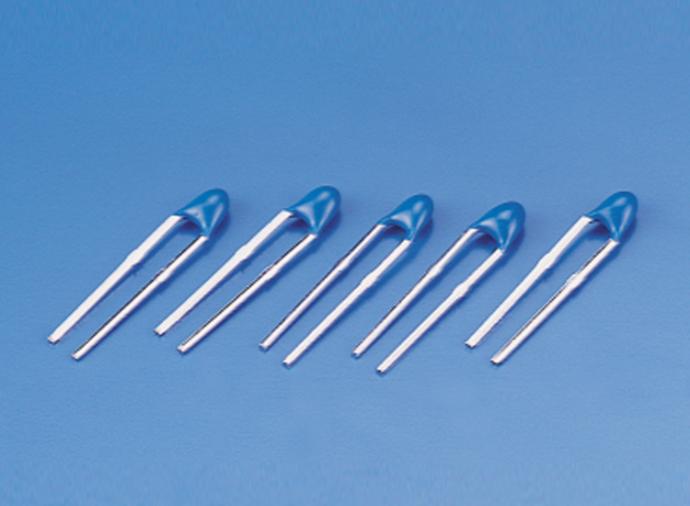

High-Precision AT Type NTC Thermistors

Type:HAT Series

Features

  1. Low cost, high stability
  2. Excellent thermal cycle endurance
  3. No adjust between the control circuit and the sensor
  4. RoHS Compliance

The HAT series thermistor is a high-precision thermal sensing device. They have small B-value tolerance and resistance.

PDF Specification Download

Application

They are also useful for insert to PCB in the constant length.



SPECIFICATIONS
Operating temperature range
-40℃ to 250℃


R/T curve
HAT Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 23-25 .


Temperature ranges
Rated Zero-power resistance at 25℃


Tolerances
土1%, 土3%, 土5%


Dissipation constant
2 mW/℃ in still air


Thermal time constant
Typically 3 second in stirred oil


Maximum
power rating

10-15mW (at 25℃)


Custom options
Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths
