Diode Type Thermistors

Type:DT series

Features

  1. High stability and best price
  2. Excellent thermal cycle endurance
  3. Glass sealed body for high reliability
  4. RoHS exemption
  5. UL1434 Certification

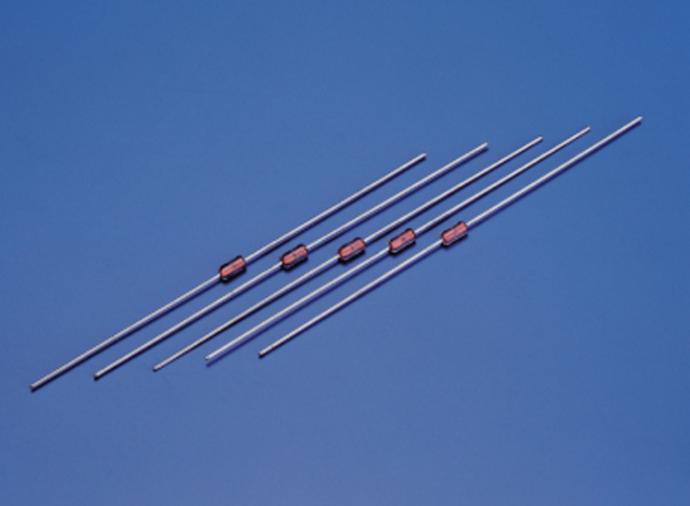

The DT series thermistor is a thermal sensor in a DO35 package. It is highly reliable and offers a wide operating range of -40 ℃ to 250 ℃.

PDF Specification Download

Application

They can be employed for home electric appliances and high temperature applications.



SPECIFICATIONS
Operating temperature range
-40℃ to 250℃


R/T curve
DT Series thermistors are available
in all R/T curve materials.
Detailed curve material information
on pages 23-25 .


Temperature ranges
Rated Zero-power resistance at 25℃


Tolerances
土1%, 土3%, 土5%


Dissipation constant
2.5 mW/℃ in still air


Thermal time constant
Typically 15 second in air


Maximum
power rating

100mW (at 25℃)


Custom options
Additional temperature and tolerance
ranges. Various lead materials,
diameters and lengths
