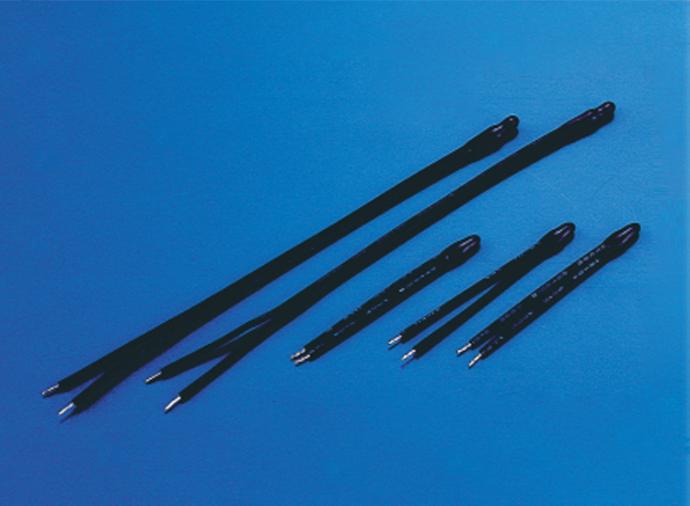

Flexible Lead NTC Thermistors
Type：TA-4 series
Features
- Low cost, high stability
- Excellent thermal cycle endurance
- No adjust between the control circuit and the sensor
- RoHS Compliance
- UL1434 Certification
The TA-4 thermistor is a high-precision thermal sensing device. TA-4 thermistor is similar to HAT thermistor but is different with flexible lead-wires.
Application
- Such as in HVAC, automotive, and industrial markets.
| SPECIFICATIONS |
|||
|
Operating temperature range
| PVC wire(-40℃ to 105℃) Teflon wire(-40℃ to 150℃) | ||
|
R/T curve
| TA-4 Series thermistors are available in all R/T curve materials. Detailed curve material information on pages 23-25 . | ||
|
Temperature ranges
| Rated Zero-power resistance at 25℃ | ||
|
Tolerances
| 土1%, 土3%, 土5% | ||
|
Dissipation constant
| 2-4 mW/℃ in still air | ||
|
Thermal time constant
| Typically 5 second in stirred oil | ||
|
Maximum power rating | 10mW (at 25℃) | ||
|
Custom options
| Additional temperature and tolerance ranges. Various lead materials, diameters and lengths | ||
