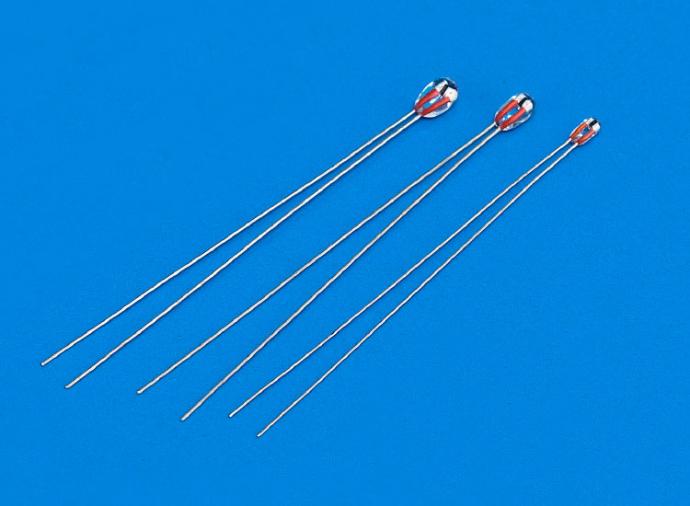

Glass Bead NTC Thermistor
Features
- Glass sealed radial lead type
- Fast response time
- High reliability and high moisture proof
- Wide range of operating temperature from -40°C up to 250°C
Application
- Low cost probe assemblies
- High temperature printer ink sensing
- Consumer electronics
- High temperature-high speed tire manufacturing
- Printed circuit board temperature sensing
- Air-conditioner
| SPECIFICATIONS |
|||
|
Operating temperature range
| -40℃ to 250℃ | ||
|
R/T curve
| GB Series thermistors are available in all R/T curve materials. Detailed curve material information on pages 23-25 . | ||
|
Temperature ranges
| Rated Zero-power resistance at 25℃ | ||
|
Tolerances
| 土1%, 土3%, 土5% | ||
|
Dissipation constant
| GBL 1.1-1.8 GBM 1.0-1.6 mW/℃ in still air GBS 0.7-0.9 | ||
|
Thermal time constant
| GBL 10-17 GBM 9-16 second in air GBS 3.5-6.5 | ||
|
Maximum power rating | |||
|
Custom options
| Additional temperature and tolerance ranges. Various lead materials, diameters and lengths | ||
